WIDIN NDPR180 18.00MM DIA 140° Point 2 Flute 5.5-7.5XD Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDNDPR180
Delivery date: 3-5 days
$143.24

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Dilling, Drilling Flood Coolant
Made In USA No
Shipping State Illinois
Coating PVD

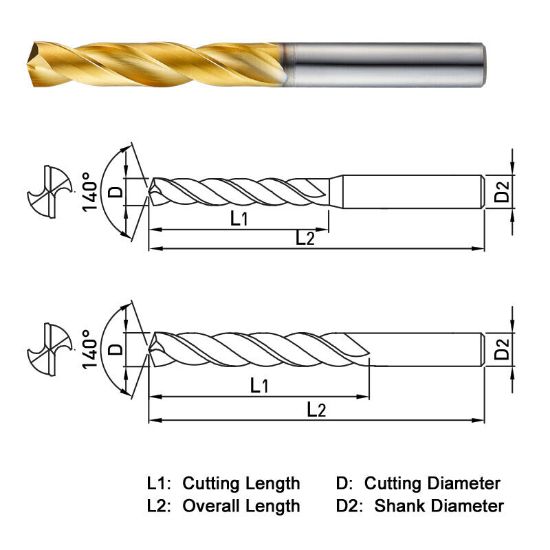

Dimensional Specifications
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Flute Length 2.9130 73.99MM
Machine Side Connection Size 0.7087 18.00MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Dia Deep 5.5XD-7.5XD
Included Angle 140°
Cutter Dia 0.7087 18.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 4.8425 123.00MM
Cut Dia Min 0.7087 18.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
