WIDIN NDPR113 11.30MM DIA 140° Point 2 Flute 5.5-7.5XD Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDNDPR113
Delivery date: 3-5 days
$57.29

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Illinois
Package Size 1
Made In USA No
Coating PVD

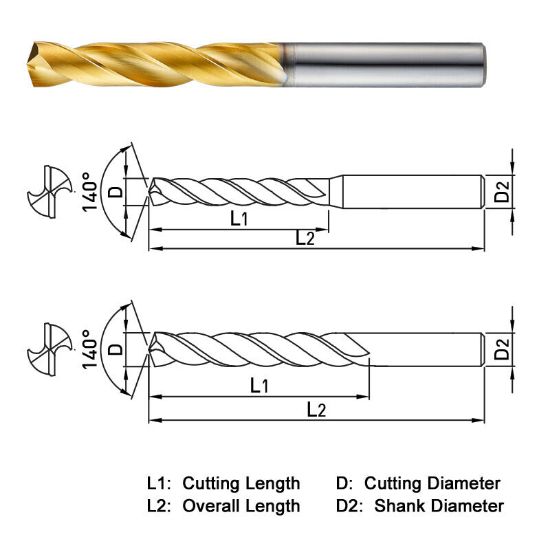

Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Cut Dia Min 0.4449 11.30MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 2.4800 62.99MM
Cutter Dia 0.4449 11.30MM
Overall Len 4.0157 102.00MM
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Dia Deep 5.5XD-7.5XD
Included Angle 140°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Automotive Yes
