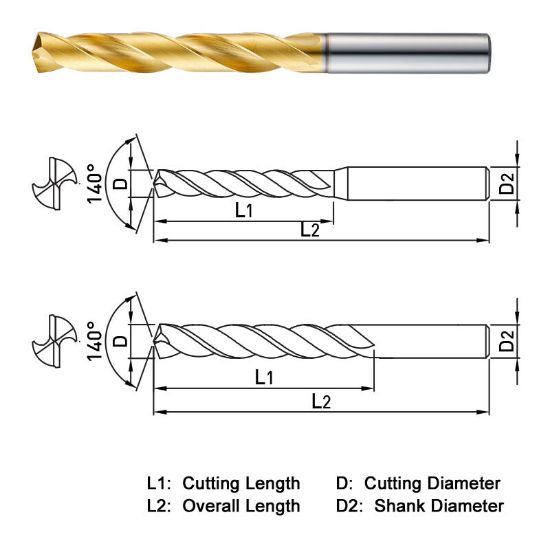

WIDIN NDPL200 20.00MM DIA 140° Point 2 Flute 5.5-7.5XD Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDNDPL200
Delivery date: 3-5 days
$262.17

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating PVD
Package Size 1
Application Dilling, Drilling Flood Coolant
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Machine Side Connection Size 0.7874 20.00MM
Flute Length 4.4090 111.99MM
Overall Len 6.2992 160.00MM
Cut Dia Min 0.7874 20.00MM
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 2
Included Angle 140°
Shank/Pilot Dia 0.7874 20.00MM
Dia Deep 5.5XD-7.5XD
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Automotive Yes
