WIDIN NDPL111 11.10MM DIA 140° Point 2 Flute 5.5-7.5XD Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDNDPL111
Delivery date: 3-5 days
$74.31

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating PVD
Application Drilling Flood Coolant, Dilling
Shipping State Illinois
Made In USA No
Package Size 1

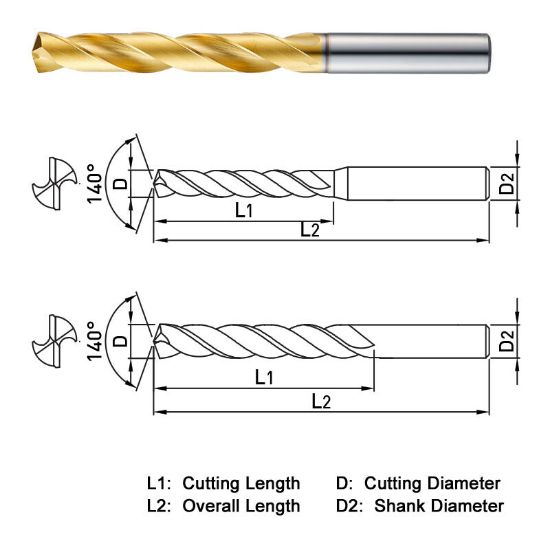

Dimensional Specifications
Cutter Dia 0.4370 11.10MM
Cut Dia Min 0.4370 11.10MM
Flute Length 2.8740 73.00MM
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Dia Deep 5.5XD-7.5XD
Included Angle 140°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 4.3307 110.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
