WIDIN MZ50200152SP DIA 0.15MM SH 0.1250 LOC 0.0090 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp Z-CLASSIC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDMZ50200152SP
Delivery date: 3-5 days
$23.72

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Made In USA No
Performance Rating High Performance
Shipping State Illinois
Package Size 1

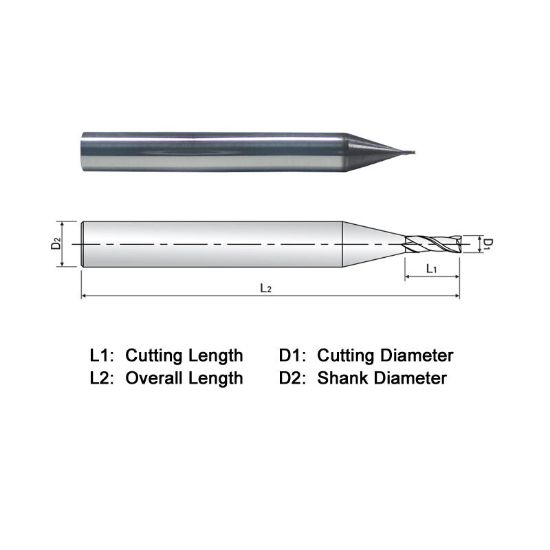

Dimensional Specifications
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard
Length Of Cut 0.0090 0.23MM
Helix Angle 30°
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron
End Of Tool Shape Square
Cutter Style Carbide Finisher
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Overall Len 1.5000 38.10MM
Cutter Dia 0.0060 0.15MM - #97
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
