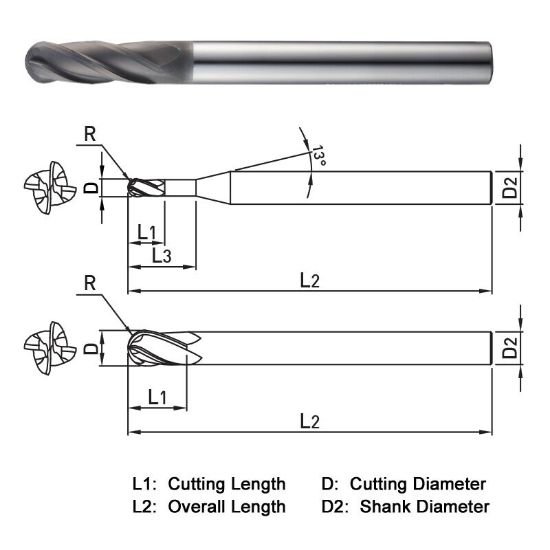

Picture of Widin IM-WGB5040050560SP Dia 0.50mm SH 0.1575 LOC 0.0787 OAL 2.362 End Mill Standard Helix Carbide Diamond Single End Ball NoseBall Z-GRA-MATE

Widin IM-WGB5040050560SP Dia 0.50mm SH 0.1575 LOC 0.0787 OAL 2.362 End Mill Standard Helix Carbide Diamond Single End Ball NoseBall Z-GRA-MATE

Part Number: WIDIM-WGB5040050560SP
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$82.33
SKU: 1219155

Description

WIDIN End Mill Carbide Diamond Ball Nose 4 Flute Single End Z-GRA-MATE
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 4
Tool Dia 0.0197 0.50MM
Length Of Cut 0.0787 2.00MM
Neck Length 0.1969 5.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Graphite
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating Diamond
