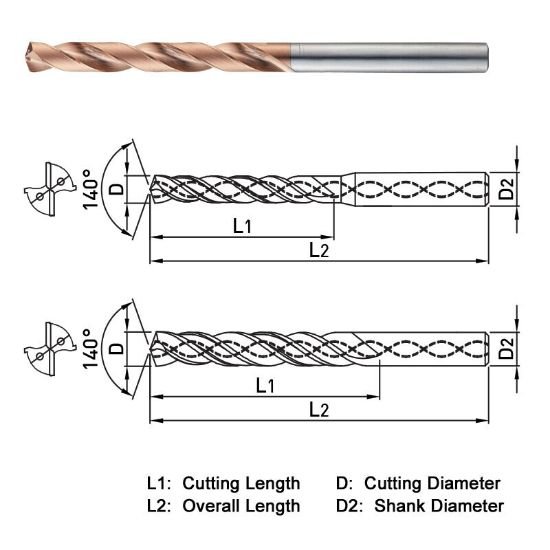

Picture of Widin HPI508152 15.20mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Widin HPI508152 15.20mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Part Number: WIDHPI508152
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$380.06
SKU: 1141995

Description

WIDIN HPI508152 Carbide Drill 15.20MM DIA 140° Point 2 Flute 8XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.7323 171.00MM
Flute Length 3.9760 100.99MM
Dia Deep 8.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.6299 16.00MM
Tool Dia 0.5984 15.20MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.5984 15.20MM
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
