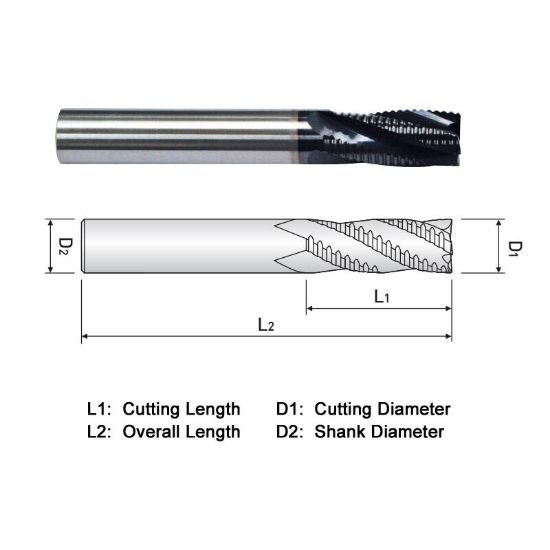

Picture of Widin FA503024 Dia 3/8 SH 0.3750 LOC 0.8750 OAL2.50 End Mill Carbide AlTiN Single End Square Sharp Z-ClassIC

Widin FA503024 Dia 3/8 SH 0.3750 LOC 0.8750 OAL2.50 End Mill Carbide AlTiN Single End Square Sharp Z-ClassIC

Part Number: WIDFA503024

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1220503
Vendor: Sussex Tool and Supply
$68.73
WIDIN End Mill Carbide AlTiN Square Sharp Flutes 3 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 3
Tool Dia 0.3750 9.53MM - 3/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.8750 22.23MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 20
Center Cutting Center Cutting
