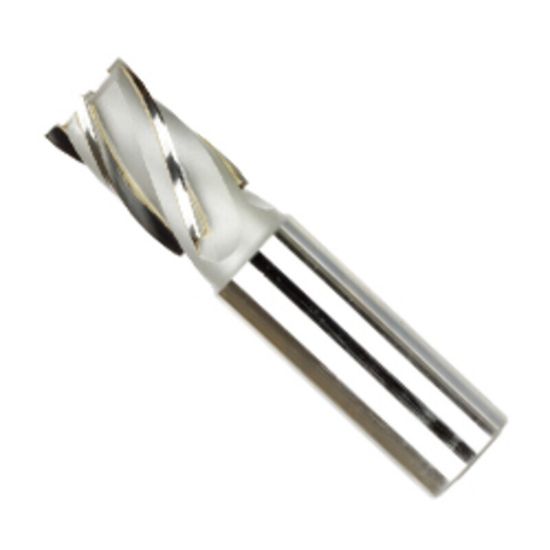

WIDIN EB304320 DIA 32MM SH 1.2598 LOC 1.9685 OAL 5.9055 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDEB304320
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Helix Angle 30°
Cutter Dia 1.2598 32.00MM
Length Of Cut 1.9685 50.00MM
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Cutter Style Carbide Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 1.2598 32.00MM
Single/Double End Single End
Flutes/Inserts 4
Inch/Metric Metric
Machine Side Connection Size 1.2598 32.00MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
