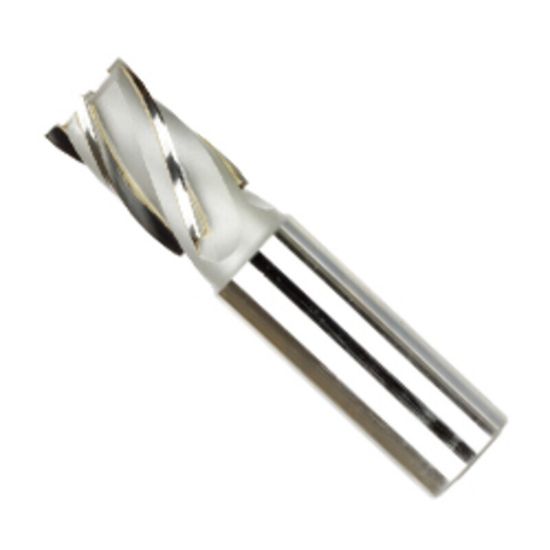

WIDIN EB304220 DIA 22MM SH 0.7874 LOC 1.2598 OAL 4.5276 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDEB304220
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Helix Angle 30°
End Of Tool Shape Square
Cutter Dia 0.8661 22.00MM
Shank/Pilot Dia 0.7874 20.00MM
Single/Double End Single End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Length Of Cut 1.2600 32.00MM
Inch/Metric Metric
Machine Side Connection Size 0.7874 20.00MM
Overall Len 4.5276 115.00MM
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
