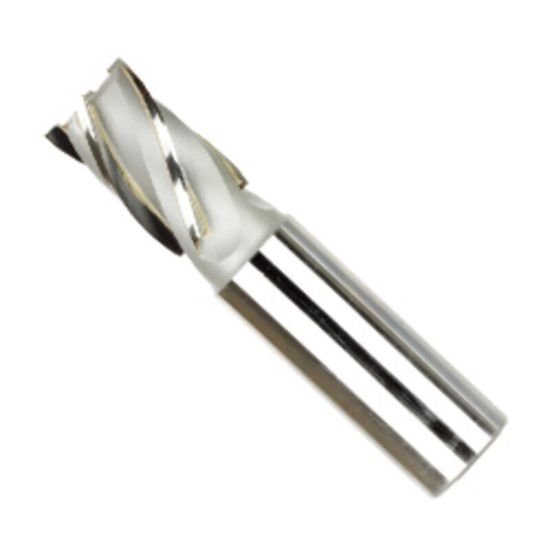

Picture of Widin EB304200 Dia 20mm SH 0.7874 LOC 1.2598 OAL4.5276 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General PURPOSE

Widin EB304200 Dia 20mm SH 0.7874 LOC 1.2598 OAL4.5276 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General PURPOSE

Part Number: WIDEB304200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218761
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIN Standard Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 4 Single End GENERAL PURPOSE Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 0.7874 20.00MM
Overall Length 4.5276 115.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 4
Tool Dia 0.7874 20.00MM
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.2600 32.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
