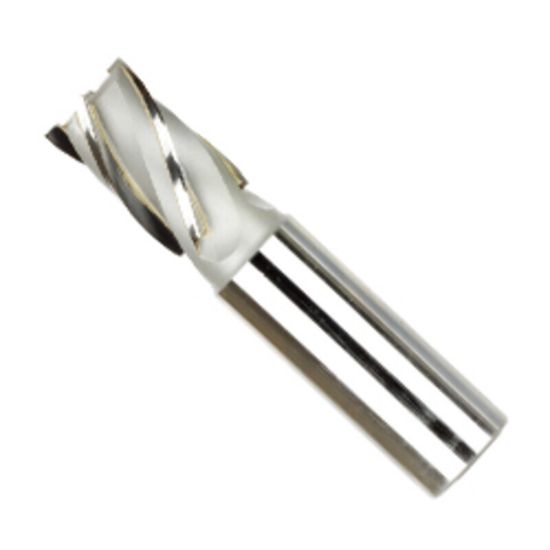

WIDIN EB304160 DIA 16MM SH 0.6299 LOC 1.1024 OAL 3.8583 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDEB304160
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Slot Milling, Face Milling, Side Milling
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 3.8583 98.00MM
Flutes/Inserts 4
Inch/Metric Metric
Shank/Pilot Dia 0.6299 16.00MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.6299 16.00MM
Length Of Cut 1.1024 28.00MM
Single/Double End Single End
Cutter Dia 0.6299 16.00MM
Helix Angle 30°
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
