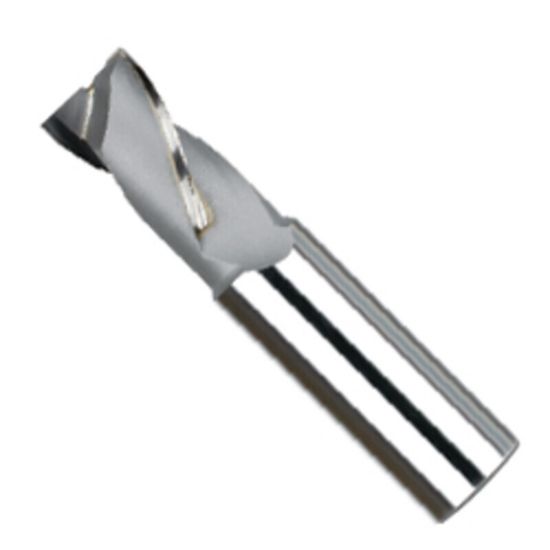

WIDIN EB302500 DIA 50MM SH 1.2598 LOC 2.4803 OAL 6.2992 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDEB302500
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 6.2992 160.00MM
Single/Double End Single End
Machine Side Connection Type Cylindrical
Length Of Cut 2.4803 63.00MM
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Machine Side Connection Size 1.2598 32.00MM
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 2
Inch/Metric Metric
Cutter Dia 1.9685 50.00MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
