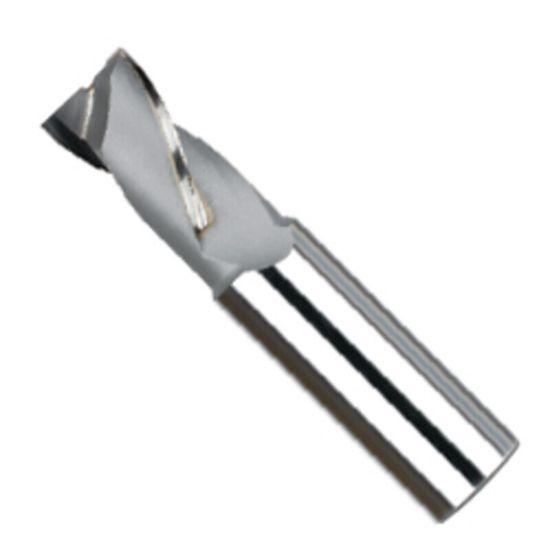

WIDIN EB302190 DIA 19MM SH 0.7874 LOC 1.2598 OAL 4.5276 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDEB302190
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Slot Milling, Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.7480 19.00MM
Flutes/Inserts 2
Length Of Cut 1.2600 32.00MM
Length Type Standard
Inch/Metric Metric
Shank/Pilot Dia 0.7874 20.00MM
End Of Tool Shape Square
Machine Side Connection Size 0.7874 20.00MM
Overall Len 4.5276 115.00MM
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
