WIDIN EA304032 DIA 1/2 SH 0.50 LOC 1.00 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDEA304032
Delivery date: 3-5 days
$22.16

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Performance Rating General Performance

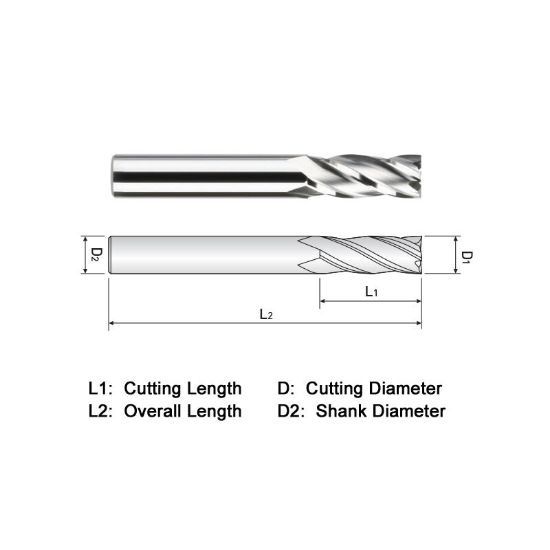

Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Overall Len 3.0000 76.20MM
Helix Angle 30°
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
