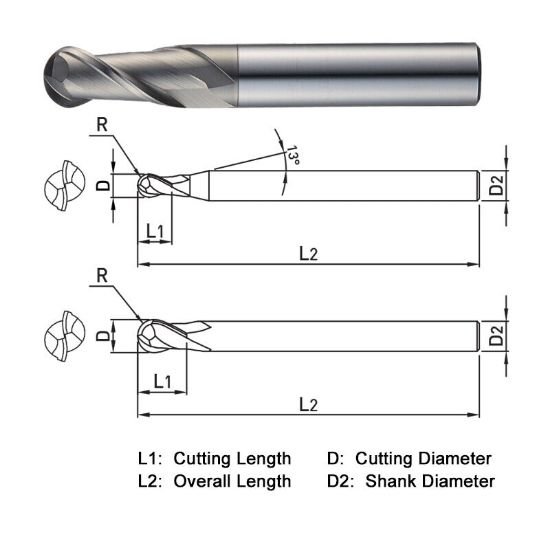

Picture of Widin DS502121 Dia 12mm SH 0.4724 LOC 1.0236 OAL 4.3307 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall Z-SUS-MATE

Widin DS502121 Dia 12mm SH 0.4724 LOC 1.0236 OAL 4.3307 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall Z-SUS-MATE

Part Number: WIDDS502121
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$86.81
SKU: 1220500

Description

WIDIN End Mill Carbide TiAlN Ball Nose 2 Flute Single End Z-SUS-MATE
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.3307 110.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Length Of Cut 1.0236 26.00MM
Geometry & Angles
Helix Angle 38
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
