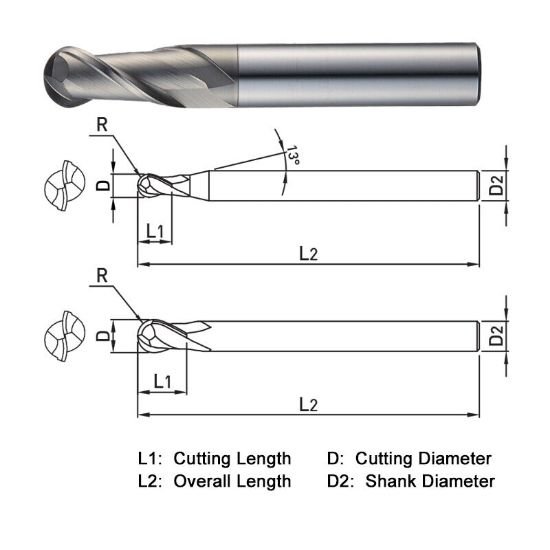

Picture of Widin DS502100 Dia 10mm SH 0.3937 LOC 0.8661 OAL 2.7559 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall Z-SUS-MATE

Widin DS502100 Dia 10mm SH 0.3937 LOC 0.8661 OAL 2.7559 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall Z-SUS-MATE

Part Number: WIDDS502100
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$63.59
SKU: 1220497

Description

WIDIN End Mill Carbide TiAlN Ball Nose 2 Flute Single End Z-SUS-MATE
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3937 10.00MM
Length Of Cut 0.8660 22.00MM
Geometry & Angles
Helix Angle 38
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
