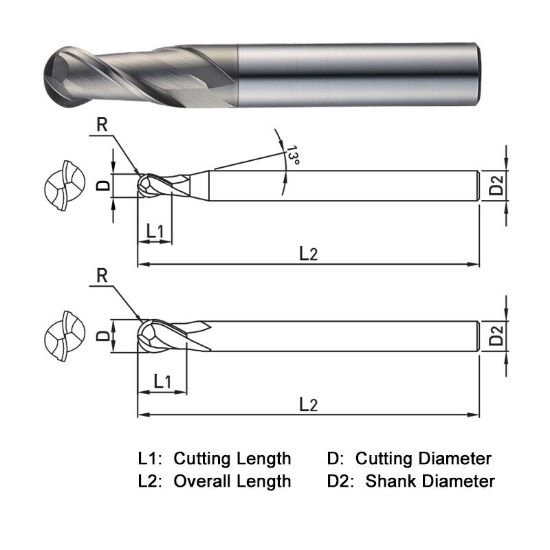

Picture of Widin DS502081 Dia 8mm SH 0.3150 LOC 0.7480 OAL 3.9370 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall Z-SUS-MATE

Widin DS502081 Dia 8mm SH 0.3150 LOC 0.7480 OAL 3.9370 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall Z-SUS-MATE

Part Number: WIDDS502081
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$51.68
SKU: 1220496

Description

WIDIN End Mill Carbide TiAlN Ball Nose 2 Flute Single End Z-SUS-MATE
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Length Of Cut 0.7480 19.00MM
Geometry & Angles
Helix Angle 38
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
