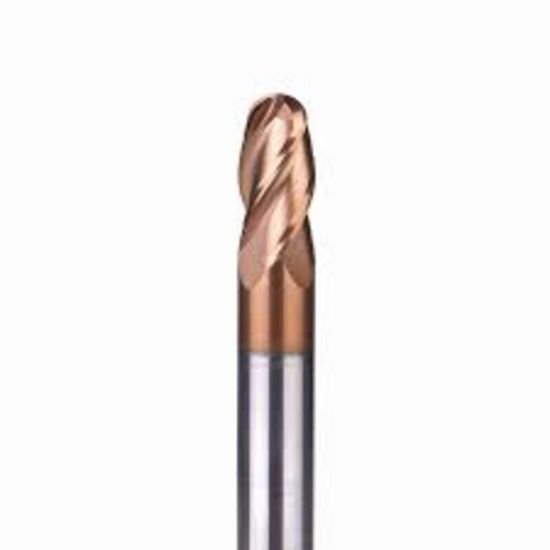

Picture of Widin DB734080-2.5 Dia 8mm SH 0.3937 LOC 0.3150 OAL 3.9370 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Widin DB734080-2.5 Dia 8mm SH 0.3937 LOC 0.3150 OAL 3.9370 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Part Number: WIDDB734080-2.5
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$105.64
SKU: 1220481

Description

WIDIN End Mill Carbide AlTiN Ball Nose 4 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 4
Tool Dia 0.3150 8.00MM
Length Of Cut 0.3150 8.00MM
Neck Length 1.2205 31.00MM
Geometry & Angles
Helix Angle 15
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
