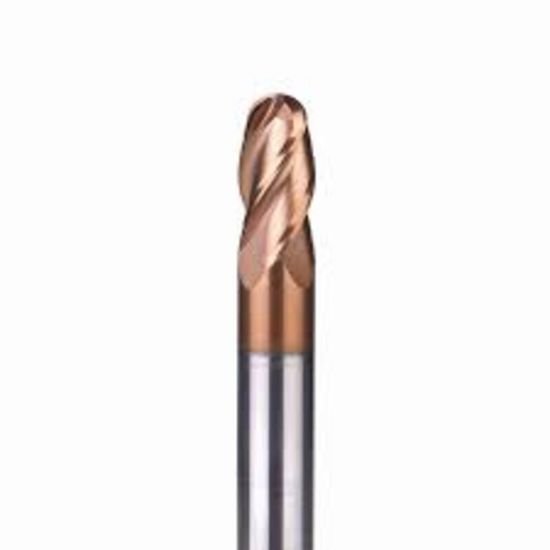

Picture of Widin DB734060-1.5 Dia 6mm SH 0.3150 LOC 0.2362 OAL3.9370 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Widin DB734060-1.5 Dia 6mm SH 0.3150 LOC 0.2362 OAL3.9370 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Part Number: WIDDB734060-1.5
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$75.96
SKU: 1220478

Description

WIDIN Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 4 Single End Z-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 4
Tool Dia 0.2362 6.00MM
Length Of Cut 0.2362 6.00MM
Neck Length 1.7323 44.00MM
Geometry & Angles
Helix Angle 15
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
