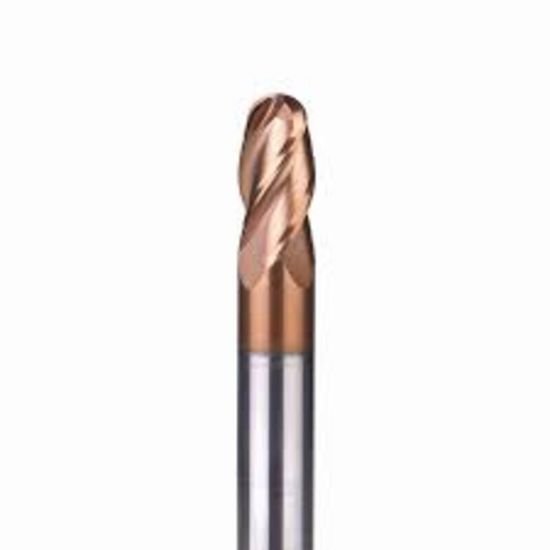

Picture of Widin DB734025-3.0 Dia 2.50mm SH 0.1575 LOC 0.1181 OAL 2.362 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Widin DB734025-3.0 Dia 2.50mm SH 0.1575 LOC 0.1181 OAL 2.362 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Part Number: WIDDB734025-3.0
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$51.10
SKU: 1220472

Description

WIDIN End Mill Carbide AlTiN Ball Nose 4 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 4
Tool Dia 0.0984 2.50MM
Length Of Cut 0.1181 3.00MM
Neck Length 0.6693 17.00MM
Geometry & Angles
Helix Angle 15
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
