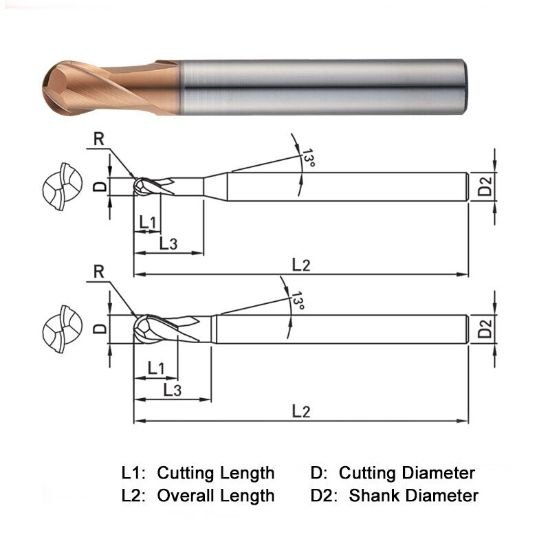

Picture of Widin DB702050 Dia 5mm SH 0.2362 LOC 0.2362 OAL 2.3622 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Widin DB702050 Dia 5mm SH 0.2362 LOC 0.2362 OAL 2.3622 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Part Number: WIDDB702050
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$50.39
SKU: 1220417

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1969 5.00MM
Length Of Cut 0.2362 6.00MM
Neck Length 0.4724 12.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
