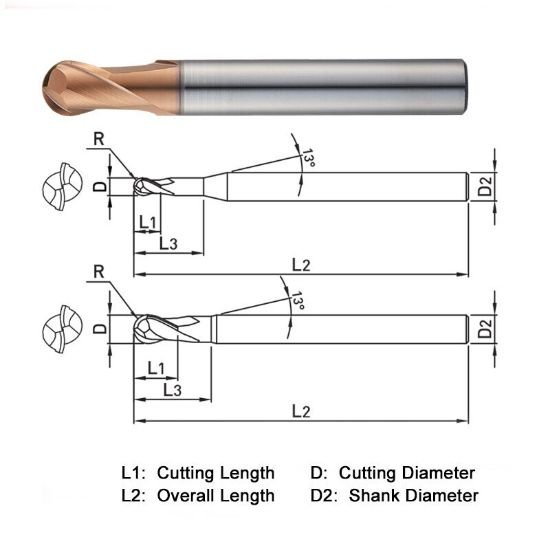

Picture of Widin DB702009 Dia 0.90mm SH 0.1575 LOC 0.0551 OAL 1.574 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Widin DB702009 Dia 0.90mm SH 0.1575 LOC 0.0551 OAL 1.574 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Part Number: WIDDB702009
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$50.39
SKU: 1220401

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.5748 40.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0354 0.90MM
Length Of Cut 0.0551 1.40MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
