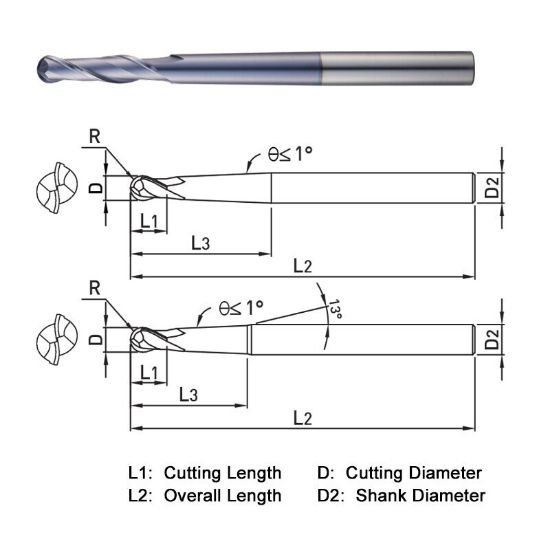

Picture of Widin DB552050 Dia 5mm SH 0.3150 LOC 0.5906 OAL 6.1024 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin DB552050 Dia 5mm SH 0.3150 LOC 0.5906 OAL 6.1024 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDDB552050
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$91.70
SKU: 1220388

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-CLASSIC
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.1024 155.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.1969 5.00MM
Length Of Cut 0.5906 15.00MM
Neck Length 3.1496 80.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
