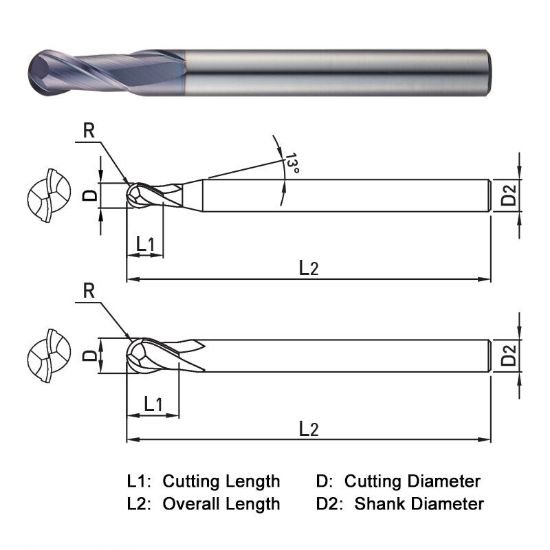

Picture of Widin DB512121 Dia 12mm SH 0.4724 LOC 1.1811 OAL 5.9055 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin DB512121 Dia 12mm SH 0.4724 LOC 1.1811 OAL 5.9055 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDDB512121
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$121.84
SKU: 1220306

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-CLASSIC
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.9055 150.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Length Of Cut 1.1811 30.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
