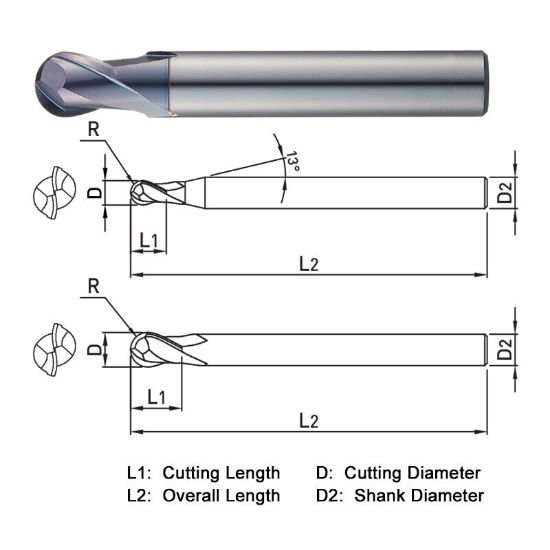

Picture of Widin DB402140 Dia 14mm SH 0.5512 LOC 0.5510 OAL 3.1496 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin DB402140 Dia 14mm SH 0.5512 LOC 0.5510 OAL 3.1496 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDDB402140
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$117.25
SKU: 1220257

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-CLASSIC
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.1496 80.00MM
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5512 14.00MM
Length Of Cut 0.5510 14.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
