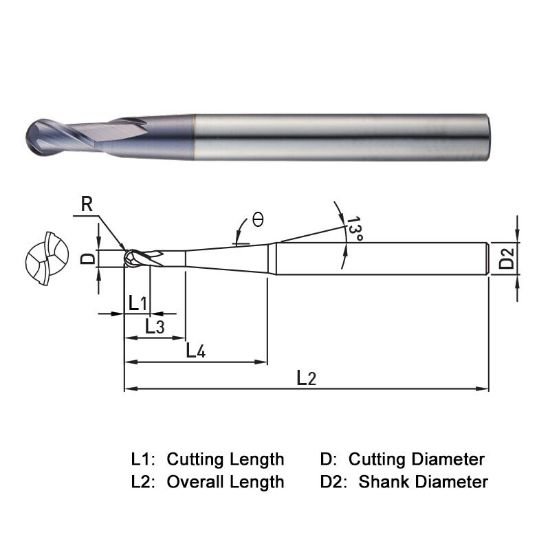

Picture of Widin DB34206015 Dia 6mm SH 0.3150 LOC 0.4724 OAL 4.3307 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall THUNDER

Widin DB34206015 Dia 6mm SH 0.3150 LOC 0.4724 OAL 4.3307 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall THUNDER

Part Number: WIDDB34206015
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$82.91
SKU: 1219655

Description

WIDIN End Mill Carbide TiAlN Ball Nose 2 Flute Single End THUNDER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.3307 110.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2362 6.00MM
Length Of Cut 0.4724 12.00MM
Neck Length 0.5906 15.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
