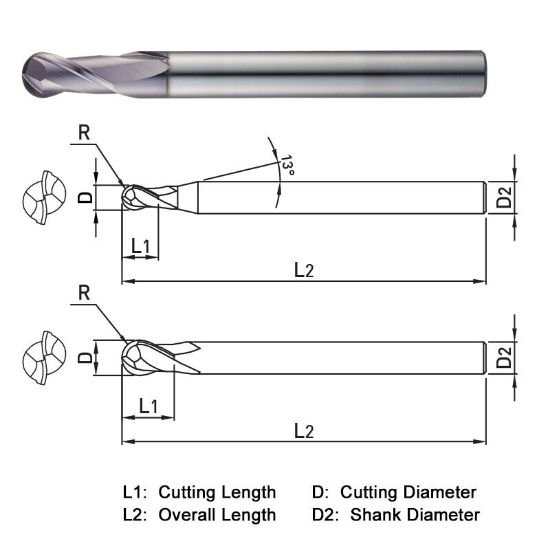

Picture of Widin DB312045 Dia 4.50mm SH 0.2362 LOC 0.315 OAL 2.7559 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall THUNDER

Widin DB312045 Dia 4.50mm SH 0.2362 LOC 0.315 OAL 2.7559 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall THUNDER

Part Number: WIDDB312045
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$27.93
SKU: 1219626

Description

WIDIN End Mill Carbide TiAlN Ball Nose 2 Flute Single End THUNDER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1772 4.50MM
Length Of Cut 0.3150 8.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
