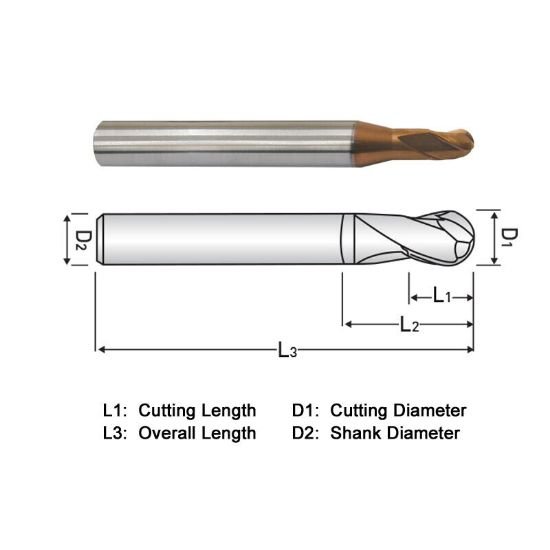

Picture of Widin DA703012 Dia 3/8 SH 0.3750 LOC 0.3750 OAL 3.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Widin DA703012 Dia 3/8 SH 0.3750 LOC 0.3750 OAL 3.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Part Number: WIDDA703012
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$108.37
SKU: 1220231

Description

WIDIN End Mill Carbide AlTiN Ball Nose 3 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 3
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.3750 9.53MM
Neck Length 0.7500 19.05MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
