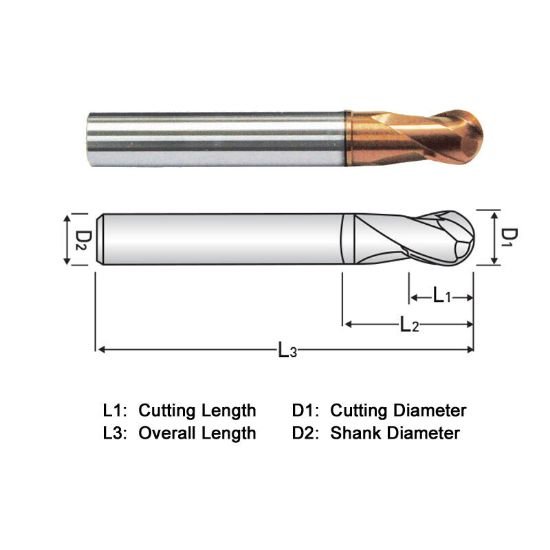

Picture of Widin DA702006 Dia 3/16 SH 0.2500 LOC 0.1875 OAL 3.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Widin DA702006 Dia 3/16 SH 0.2500 LOC 0.1875 OAL 3.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Part Number: WIDDA702006
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$56.47
SKU: 1220220

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.1875 4.76MM
Neck Length 0.3750 9.53MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
