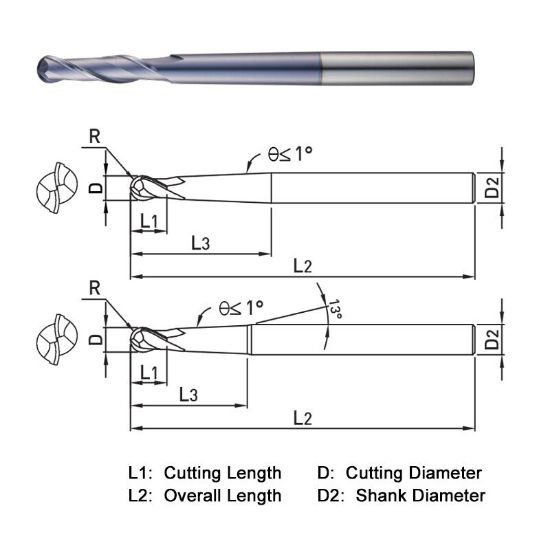

Picture of Widin DA542008 Dia 1/4 SH 0.3750 LOC 0.50 OAL4.3750 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin DA542008 Dia 1/4 SH 0.3750 LOC 0.50 OAL4.3750 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDDA542008

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1220202
Vendor: Sussex Tool and Supply
$81.16
WIDIN Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 4.3750 111.13MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 0.5000 12.70MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
Neck Length 0.6250 15.88MM
