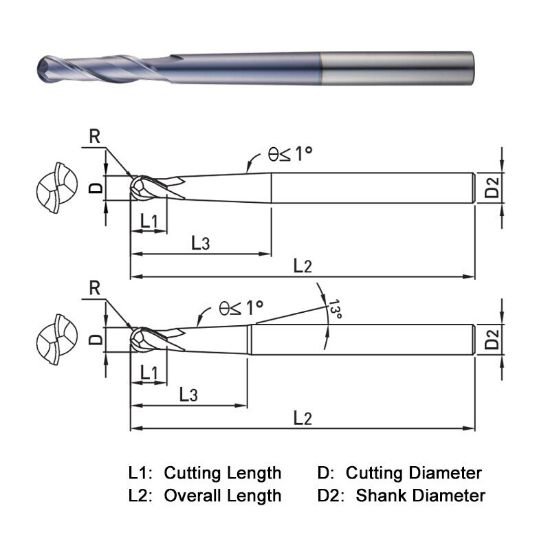

Picture of Widin DA542006 Dia 3/16 SH 0.3750 LOC 0.3750 OAL 4.3750 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin DA542006 Dia 3/16 SH 0.3750 LOC 0.3750 OAL 4.3750 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDDA542006
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$84.87
SKU: 1220201

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-CLASSIC
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.3750 111.13MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.3750 9.53MM
Neck Length 0.4531 11.51MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
