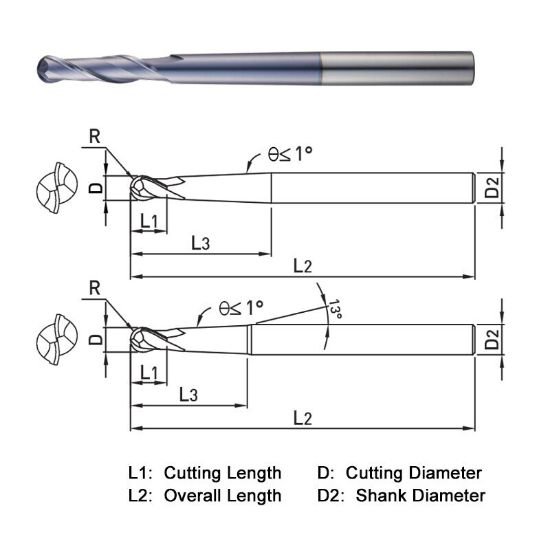

Picture of Widin DA542004 Dia 1/8 SH 0.2500 LOC 0.2500 OAL 3.6250 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin DA542004 Dia 1/8 SH 0.2500 LOC 0.2500 OAL 3.6250 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDDA542004
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$50.63
SKU: 1220200

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-CLASSIC
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.6250 92.08MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.2500 6.35MM
Neck Length 0.3281 8.33MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
