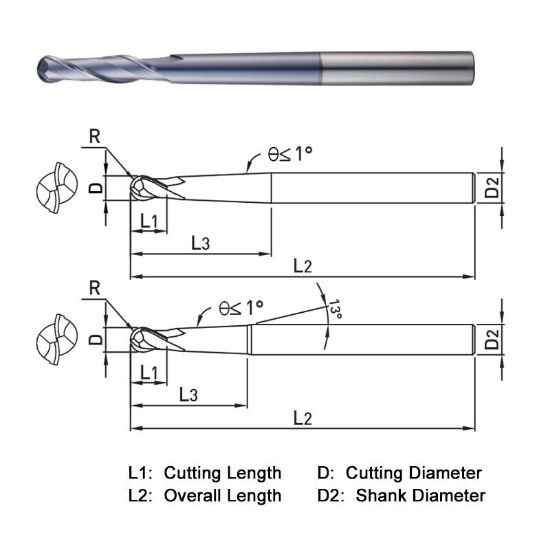

Picture of Widin DA542001 Dia 1/16 SH 0.2500 LOC 0.1563 OAL 2.3750 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin DA542001 Dia 1/16 SH 0.2500 LOC 0.1563 OAL 2.3750 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDDA542001
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$46.39
SKU: 1220198

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-CLASSIC
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.0625 1.59MM - 1/16
Length Of Cut 0.1563 3.97MM
Neck Length 0.2343 5.95MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
