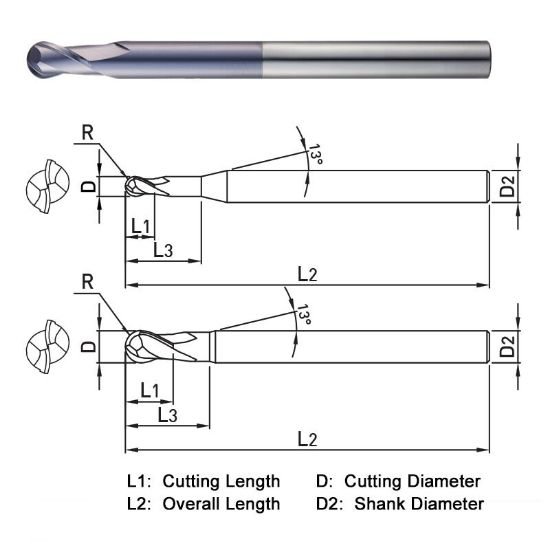

Picture of Widin DA522016 Dia 1/2 SH 0.50 LOC 0.8750 OAL 4.2500 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin DA522016 Dia 1/2 SH 0.50 LOC 0.8750 OAL 4.2500 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDDA522016
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$95.90
SKU: 1220194

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-CLASSIC
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.2500 107.95MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.8750 22.23MM
Neck Length 1.3750 34.93MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
