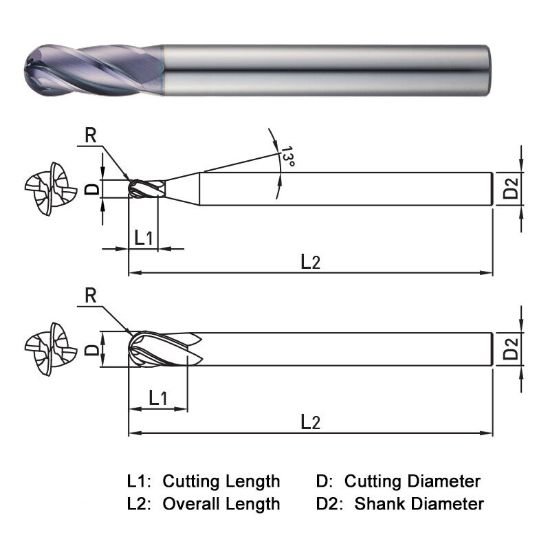

Picture of Widin DA514016 Dia 1/2 SH 0.50 LOC 0.8750 OAL4.2500 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin DA514016 Dia 1/2 SH 0.50 LOC 0.8750 OAL4.2500 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDDA514016

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1220185
Vendor: Sussex Tool and Supply
$92.04
WIDIN Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 4 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Length Type LONG
Performance Rating High Performance
Length Of Cut 0.8750 22.23MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
