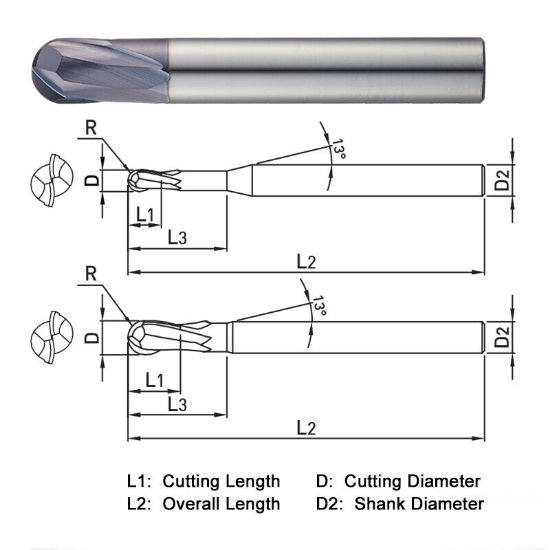

Picture of Widin DA412016 Dia 1/2 SH 0.50 LOC 0.50 OAL 4.50 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Plus

Widin DA412016 Dia 1/2 SH 0.50 LOC 0.50 OAL 4.50 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Plus

Part Number: WIDDA412016
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$87.31
SKU: 1220164

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-PLUS
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.5000 12.70MM
Neck Length 1.0000 25.40MM
Geometry & Angles
Helix Angle 15
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
