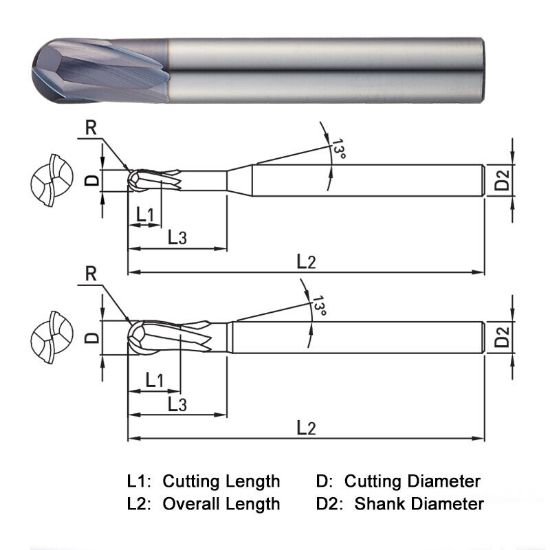

Picture of Widin DA412012L Dia 3/8 SH 0.3750 LOC 1.00 OAL 6.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Plus

Widin DA412012L Dia 3/8 SH 0.3750 LOC 1.00 OAL 6.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Plus

Part Number: WIDDA412012L
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$87.84
SKU: 1220163

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-PLUS
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 1.0000 25.40MM
Neck Length 1.3750 34.93MM
Geometry & Angles
Helix Angle 15
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
