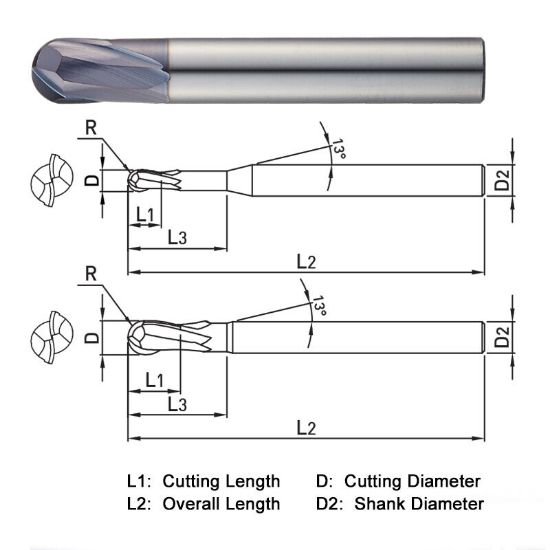

Picture of Widin DA412010 Dia 5/16 SH 0.3125 LOC 0.3125 OAL 4.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Plus

Widin DA412010 Dia 5/16 SH 0.3125 LOC 0.3125 OAL 4.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Plus

Part Number: WIDDA412010
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$51.24
SKU: 1220161

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-PLUS
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 2
Tool Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.3125 7.94MM
Neck Length 0.6250 15.88MM
Geometry & Angles
Helix Angle 15
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
