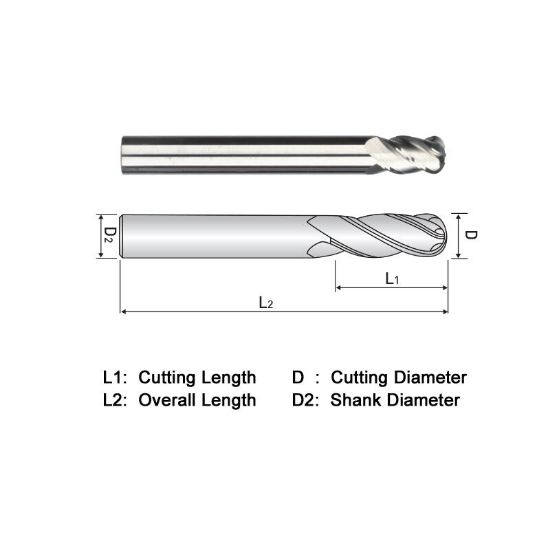

WIDIN BA304012X DIA 3/16 SH 0.1875 LOC 1.1250 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDBA304012X
Delivery date: 3-5 days
$14.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Overall Len 3.0000 76.20MM
Helix Angle 30°
Machine Side Connection Size 0.1875 4.76MM
Cutter Style Carbide Ball Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
End Of Tool Shape Ball Nose
Cutter Dia 0.1875 4.76MM - 3/16
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Length Of Cut 1.1250 28.58MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
