WIDIN BA304011 DIA 11/64 SH 0.1875 LOC 0.5625 OAL 2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDBA304011
Delivery date: 3-5 days
$8.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Copy Milling, Ball Milling, Side Milling
Made In USA No
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Style Carbide Ball Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch

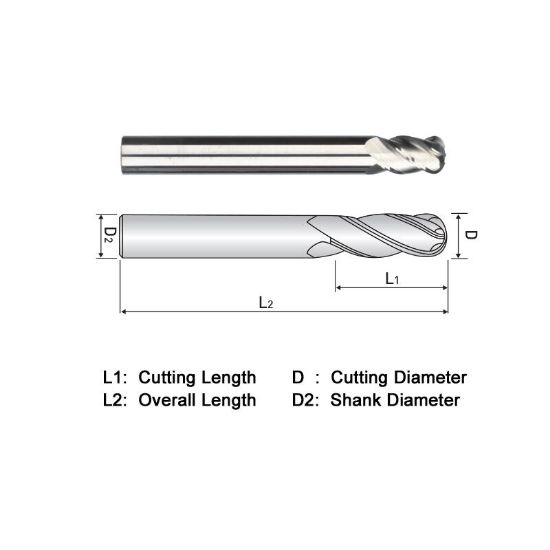

Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Length Type Standard
Length Of Cut 0.5625 14.29MM
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.1719 4.36MM - 11/64
Single/Double End Single End
End Of Tool Shape Ball Nose
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
