WIDIN BA302064X DIA 1 SH 1.00 LOC 3.00 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDBA302064X
Delivery date: 3-5 days
$234.51

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Ball Milling, Side Milling, Ball Slot Milling, Profile Milling, Copy Milling
Shipping State Illinois
Made In USA No
Package Size 1

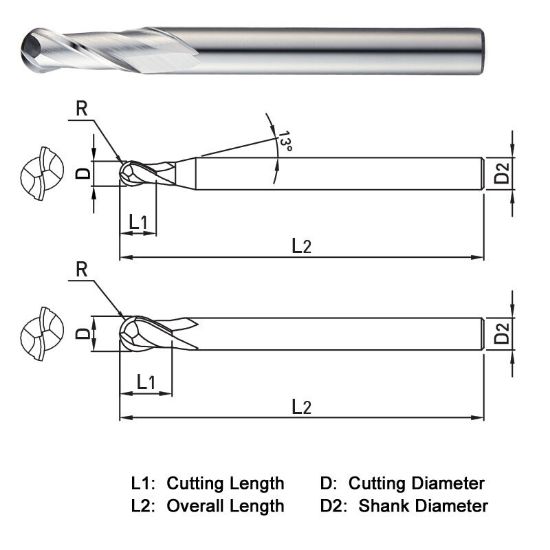

Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Helix Angle 30°
End Of Tool Shape Ball Nose
Flutes/Inserts 2
Length Of Cut 3.0000 76.20MM
Length Type Standard
Cutter Style Carbide Ball Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
