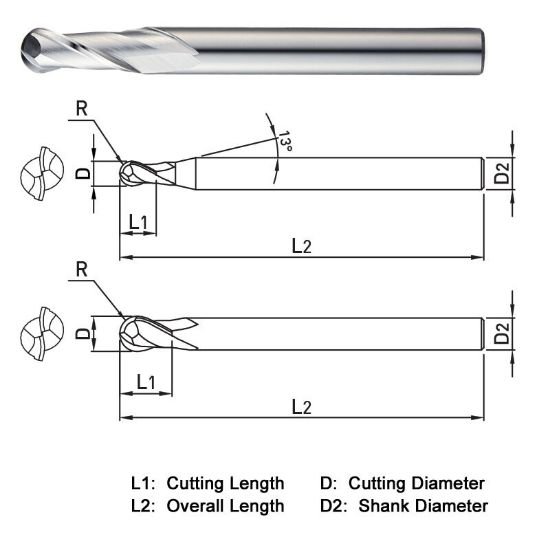

Picture of Widin BA302032 Dia 1/2 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall General PURPOSE

Widin BA302032 Dia 1/2 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall General PURPOSE

Part Number: WIDBA302032
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1218545
Vendor: Sussex Tool and Supply
$26.56

Description

WIDIN Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End GENERAL PURPOSE Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 1.0000 25.40MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
