WIDIN BA302024LS DIA 3/8 SH 0.3750 LOC 2.00 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDBA302024LS
Delivery date: 3-5 days
$55.19

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Ball Milling, Ball Slot Milling, Profile Milling
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1

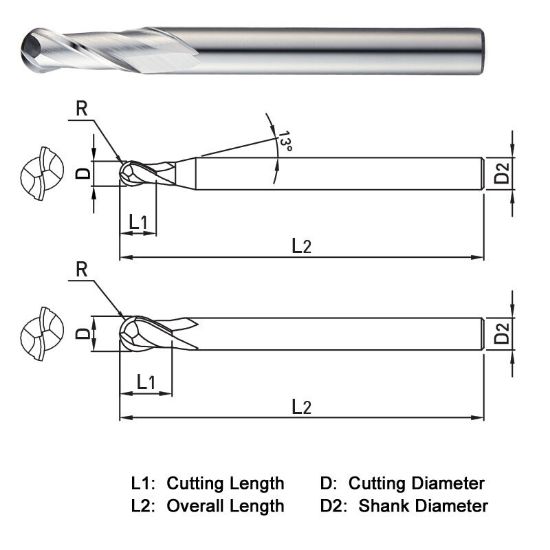

Dimensional Specifications
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Overall Len 6.0000 152.40MM
Helix Angle 30°
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutter Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Ball Nose
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Length Of Cut 2.0000 50.80MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
