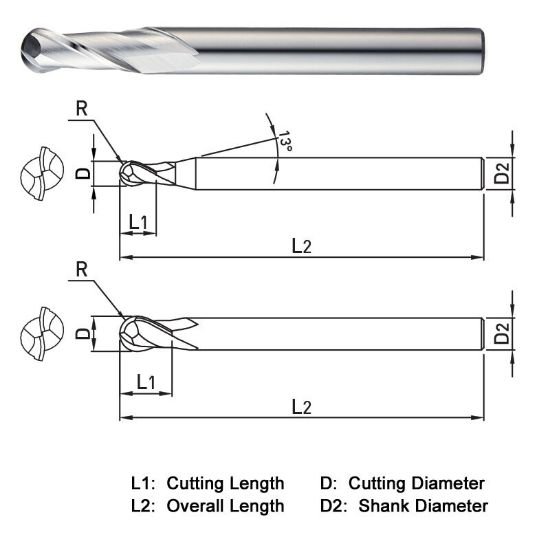

Picture of Widin BA302011 Dia 11/64 SH 0.1875 LOC 0.5625 OAL2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall General PURPOSE

Widin BA302011 Dia 11/64 SH 0.1875 LOC 0.5625 OAL2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall General PURPOSE

Part Number: WIDBA302011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218523
Vendor: Sussex Tool and Supply
$7.46
WIDIN Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End GENERAL PURPOSE Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 0.1875 4.76MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Tool Dia 0.1719 4.36MM - 11/64
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.5625 14.29MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
