WIDIN BA302006 DIA 3/32 SH 0.1250 LOC 0.3125 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDBA302006
Delivery date: 3-5 days
$6.29

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Side Milling, Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling
Performance Rating General Performance

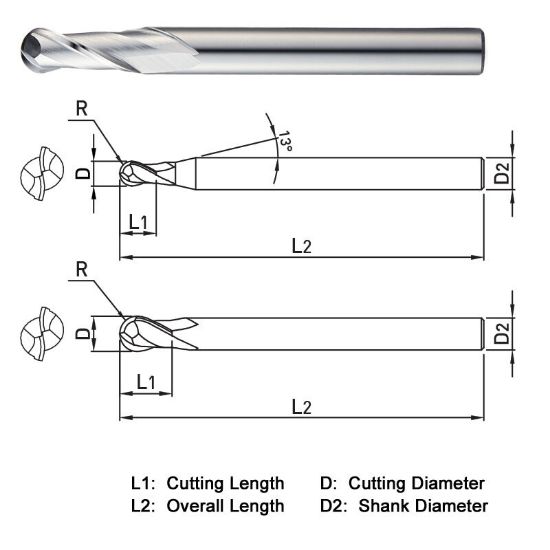

Dimensional Specifications
Overall Len 1.5000 38.10MM
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard
Machine Side Connection Type Cylindrical
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Tool Material Carbide
Length Of Cut 0.3125 7.94MM
Inch/Metric Inch
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutter Dia 0.0938 2.38MM - 3/32
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
