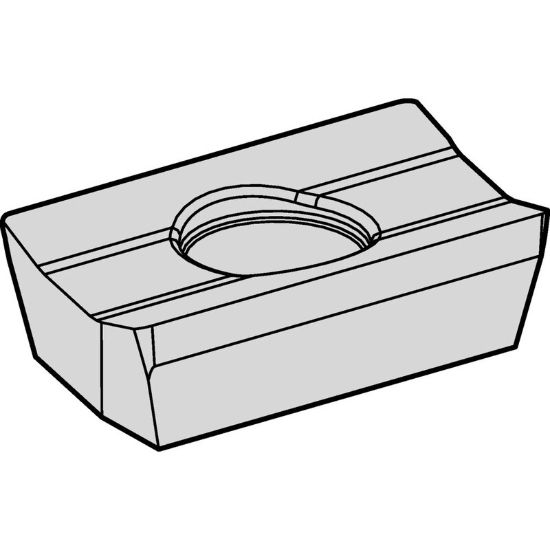

WIDIA/KENNAMETAL XPHT160412 TTI25 Milling Insert Paralelagram 0.046 Corner Radius

ANSI: XPHT160412 TTI25

ISO: XPHT 160412 TTI25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2029048
Delivery date: 3-5 days
$14.77

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

For steels

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Pennsylvania
Grade TTI25
Package Size 10
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Insert/Tool Insert
Application Milling Insert
Dimensional Specifications
Insert Size Ic 16
Cut Rating <40HRC Steel
Corner Radius 0.0469 1.19MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cutting Edge Mat Cermet
Insert Style XP
