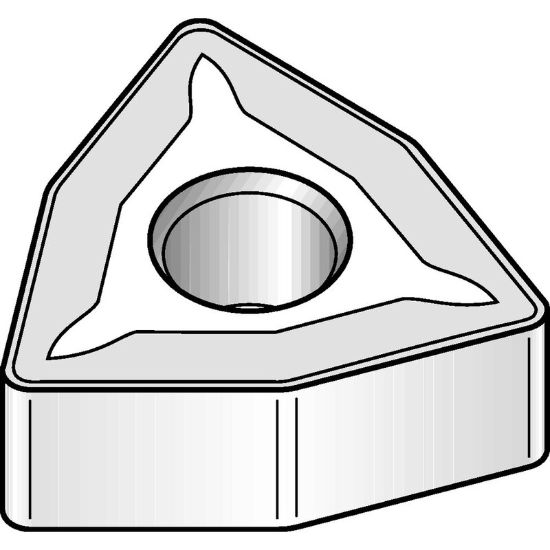

WIDIA/KENNAMETAL WNMG4325 TN4000 Insert Trigon TiN + TiCN + Al2O3 0.031 Corner Radius

ANSI: WNMG4325 TN4000

ISO: WNMG0804085 TN4000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2561717
Delivery date: 3-5 days
$9.21

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CVD, good for steel and stainless steel light interupted

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Insert Application Semi Finishing, Medium
Coating TiN + TiCN + Al2O3
Application Turning Insert
Package Size 10
Insert/Tool Insert
Grade TN4000
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Insert Size Ic 12 "43"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
Cutting Edge Mat Carbide
