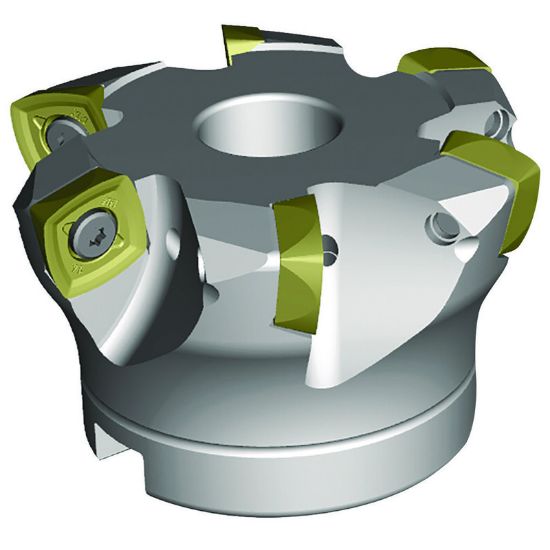

Picture of WIDIA/KENNAMETAL VXF500Z10S150XE16 Milling Cutter 4.858 Cutter Diameter Face Mill 1.500

WIDIA/KENNAMETAL VXF500Z10S150XE16 Milling Cutter 4.858 Cutter Diameter Face Mill 1.500

ANSI: VXF500Z10S150XE16

ISO: VXF500Z10S150XE16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6597789
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Made In USA No
Package Size 1
Insert Application General Purpose
Shipping State Pennsylvania
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 1605
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 4.8583 123.40MM
Depth Of Cut Max 0.1378
Machine Side Connection Size 1.5000 38.10MM
Cut Dia Min 4.0985 104.10MM
Tool Material Steel
Overall Len 2.4800 62.99MM
Flutes/Inserts 10
Cutting & Machining Properties
Insert Style XE
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru Yes
Max Ramp Angle 0.37°
