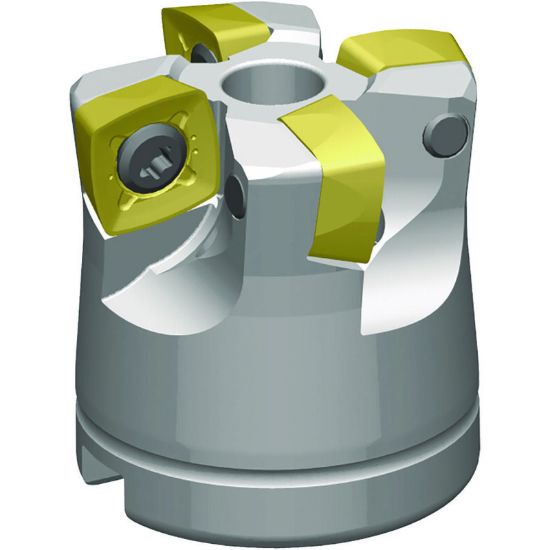

Picture of WIDIA/KENNAMETAL VXF400Z09S125XD12 Milling Cutter 3.881 Cutter Diameter Face Mill 1.250

WIDIA/KENNAMETAL VXF400Z09S125XD12 Milling Cutter 3.881 Cutter Diameter Face Mill 1.250

ANSI: VXF400Z09S125XD12

ISO: VXF400Z09S125XD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6596780
Delivery date: 3-5 days
$742.39

Features And Benefits

16.5° lead angle redistributes cutting forces in the spindle z-axis direction. Greatly reduces tool defl ection and vibrations for improved tool life. Suitable for long tool reach. Unique integrated radial wiping facet to achieve a nice wall finish at pocket and helical interpolation milling. Durable cutting edges qualifi ed to machine a wide range of materials. WS40PM — best-in-class milling grade for machining stainless steel and HTA.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cut Dia Min 3.2830 83.39MM
Depth Of Cut Max 0.0984
Overall Len 1.9685 50.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 9
Cutter Dia 3.8819 98.60MM
Insert Size Ic 1205
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Style XD
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Max Ramp Angle 0.31°
